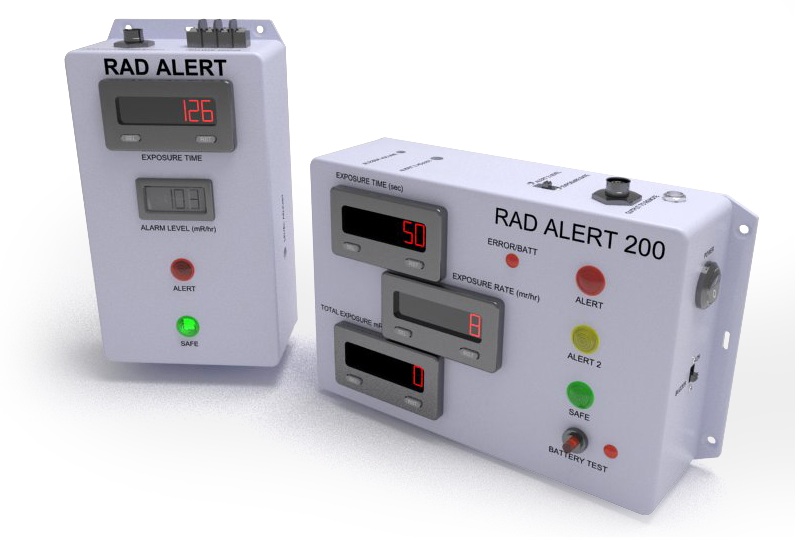

The Rad Alert 200 is the next generation area monitor that includes a built in GM Gamma detector for monitoring rooms where radio nuclides may be present or where devices producing radiation may be located. This unit includes separate panels to display exposure rate (mR/hr), total integrated exposure (mR) and total exposure time on a remote alarm that is tethered to the primary alarm. The primary alarm includes a digital timer that counts time when radiation is present and a room door is open. This feature can be useful for routing patient safety QA or as a stopwatch in the event of an emergency. The monitor has a backup powered by either rechargeable NiMH or alkaline AA batteries. The rechargeable batteries are maintained on a trickle charge. The detector unit has an adjustable trigger level with the level displayed on a digital display. The slave unit contains an audible buzzer with an adjustable volume control that can be turned on or off with a switch mounted on the side of the unit. A separate dose trigger is also included that can be set by the user. When the dose exceeds this level a separate yellow light turns on.
Includes a 30 meter cable for easy connection between monitor and remote alarm.
RadAlert 200 detector
Indicated use
Radiation area monitoring
Internal GM detector range
0.5 mR/hr to 30,000 mR/hr (utilizes 2 separate GM Tubes)
Display
4 digit LCD display with 0.4 in (1 cm) character height Emergency counter 8 digit LED display with 0.8 in character height
Display range
000.0 to 200
Display units
mR/hr
Linearity
Reading within ± 10% of true value with detector connected
Response
Typically 1 second from onset of radiation
Status
(green light) Indicates the instrument is functioning properly & power is on
alarm
Indicated by a flashing red light and audible buzzer
battery
indicated by red LED 8 AA NiMH on trickle charge in remote station
Calibration controls
Accessible from potentiometer on side of unit
Dead time
< 10% at max exposure rate
Data output
(current sink), and direct connection to battery and ground
Power requirements
12 VDC universal adaptor may be plugged into either main detector unit or remote alarm
Battery life
7-9 hours
Battery charger
Battery is continuously trickle charged when instrument is connected to line power
Construction
ABS Plastic Enclosure
Temperature range
0º to 130ºF (- 18º to 54ºC).
Size
4.4 (w) x 2.4 (d) x 8.5 in (h) (11.2 x 6.1 x 21.6 cm)
Weight
6.5 lb (2.3 kg)
Remote Station
Indicated use
Remote display for RadAlert 100 & 200
Status
(green light) Indicates the instrument is functioning properly & Power is on
alarm
(flashing LED) Indicates the radiation level exceeds the alarm point, flashing yellow LED indicates exposure rate has exceeded the high alarm level.
high alarm
Timer
Exposure Rate
Integrated Exposure
Detector fail
Indicated by red LED
Audio
Piezo Buzzer type with ON/OFF switch and adjustable volume
Power requirements
12 VDC universal adaptor
Construction
ABS Plastic Enclosure
Temperature range
0º to 130ºF (- 18º to 54ºC).
Size
9.5 (w) x 2.5 (d) x 6 in (h) (22.9 x 6.4 x 15.2 cm)
Weight
