RadAlert 50

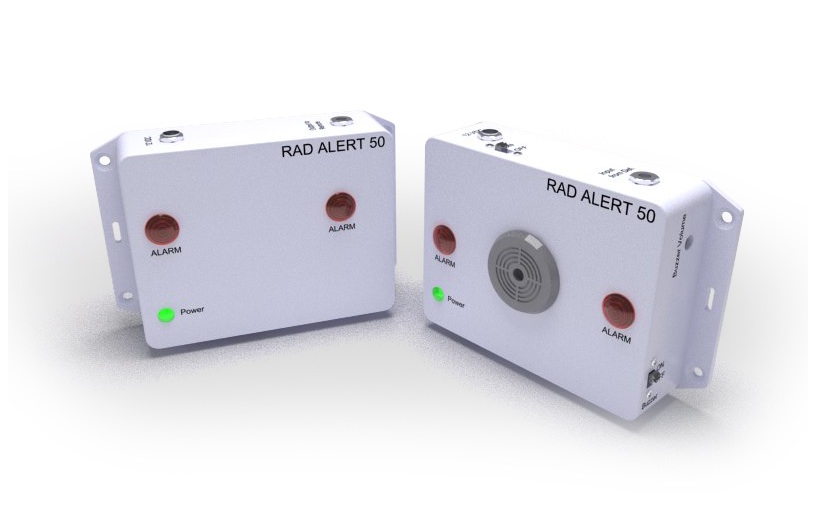

The RadAlert 50 is our newest detector in a low profile design. This affordable radiation detector with a sensitivity from 2 - 1000 mR/hr. The unit can operate independent of its remote slave and thus can be powered directly from the slave via a 30 meter connection cable or directly from a nearby AC outlet. When radiation exceeds a set threshold, that can be manually adjusted via an adjustment potentiometer on the side, the warning red LED lights flash in alternating sequence. If the slave unit is connected an identical set of red LED lights flash. The slave unit also contains a battery backup and an audible buzzer which can be turned on or off by a small switch on the side. The buzzer can also have its volume adjusted by adjustment of a small potentiometer. Since the batteries for the RadAlert 50 are located inside the slave unit there is no need to mount a separate battery pack on the same wall.

RadAlert 50 detector

Indicated use

  Radiation area monitoring



Internal GM detector range

   0.5 mR/hr to 1000 mR/hr



Display

  N.A.



Display range

  N.A.



Display units

  mR/hr



Linearity

  Reading within ± 10% of true value with detector connected



Response

  Typically 3 seconds from 10% to 90% of final reading



Status

  (green light) Indicates the instrument is functioning properly



alarm

Indicated by 2 flashing red LED's (2 Hz) and audible buzzer (may be turned off)



Calibration controls

  Accessible from front of instrument (protective cover provided)



Dead time

< 10% at maximum exposure rate



Data output

  signals (current sink), and direct connection to battery and ground



Power requirements

  12 VDC universal adaptor may be plugged into either main detector unit or remote alarm



Battery life

  2-3 hours



Battery charger

  Battery is continuously trickle charged when instrument is connected to line power



Construction

  ABS Plastic Enclosure



Temperature range

  0º to 130ºF (- 18º to 54ºC).



Size

  5.8 (w) x 1.5 (d) x 3.7 in (h) (17.7 x 3.8 x 9.4 cm)



Weight

  1.5 lb (0.7 kg)



Remote Station

Indicated use

  Remote display for RadAlert 50



Status

  (green light) Indicates the instrument is functioning properly & Power is on



High alarm

  (dual red flashing LED) Indicates the radiation level exceeds the high alarm point





Audio

  Piezo Buzzer type with ON/OFF switch and adjustable volume



Power requirements

  12 VDC universal adaptor may be plugged into either main detector unit or remote alarm



Construction

  ABS Plastic Enclosure



Temperature range

  0º to 130ºF (- 18º to 54ºC).



Size

  5.8 (w) x 1.5 (d) x 3.7 in (h) (17.7 x 3.8 x 9.4 cm)



Weight

  1.5 lb (0.7 kg)
