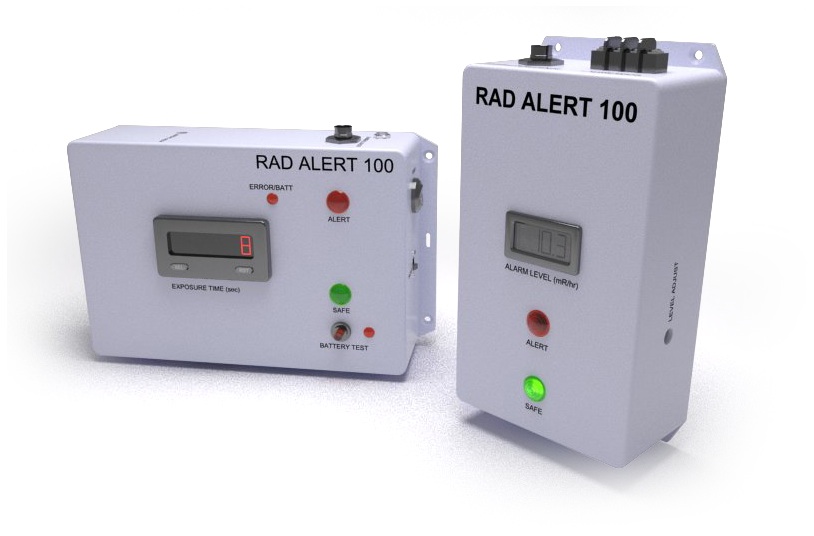

The Rad Alert 100 is the next generation area monitor that includes a built in GM Gamma detector for monitoring rooms where radio nuclides may be present or where devices producing radiation may be located. This unit includes a devoted panel to display total exposure time on a remote alarm that is tethered to the primary alarm. The primary alarm contains a digital threshold panel that indicates the level at which the alarm will trigger. The monitor has a backup powered by either rechargeable NiMH or alkaline AA batteries. The rechargeable batteries are maintained on a trickle charge. The detector unit has an adjustable trigger level with the level displayed on a digital display. The slave unit contains an audible buzzer with an adjustable volume control that can be turned on or off with a switch mounted on the side of the unit. Includes a 30 meter cable for easy connection between monitor and remote alarm.
This unit can be upgraded to the RadAlert 200 for additional functionality.
|
RadAlert 100 detector |
Indicated use | Radiation area monitoring |
|
| Internal GM detector range | 0.5 mR/hr to 1000 mR/hr |
|
|
|
|
|
| Display |
4 digit LED display with 0.4 in (1 cm) character height |
|
| Display range |
000.0 to 200 |
|
| Display units | mR/hr |
|
| Linearity |
Reading within ± 10% of true value with detector connected |
|
| Response |
Typically 1 second from onset of radiation |
|
|
Status | (green light) Indicates the instrument is functioning properly & power is on |
|
|
alarm | Indicated by a flashing red light and audible buzzer |
|
|
|
|
|
|
|
|
|
| battery | indicated by red LED 8 AA NiMH on trickle charge in remote station |
|
| Calibration controls | Accessible from potentiometer on top of unit |
|
|
|
|
|
|
|
|
|
| Dead time | < 10% at max exposure rate |
|
|
|
|
|
|
|
|
|
|
Data output |
(current sink), and direct connection to battery and ground |
|
| Power requirements | 12 VDC universal adaptor may be plugged into either main detector unit or remote alarm |
|
| Battery life | 7-9 hours |
|
| Battery charger |
Battery is continuously trickle charged when instrument is connected to line power |
|
| Construction |
ABS Plastic Enclosure |
|
| Temperature range | 0º to 130ºF (- 18º to 54ºC). |
|
| Size | 4.4 (w) x 2.4 (d) x 8.5 in (h) (11.2 x 6.1 x 21.6 cm) |
|
| Weight | 6.5 lb (2.3 kg) |
|
|
|
|
|
Remote Station |
Indicated use | Remote display for RadAlert 100 & 200 |
|
| Status | (green light) Indicates the instrument is functioning properly & Power is on |
|
| alarm | (flashing LED) Indicates the radiation level exceeds the high alarm point flashing LED) |
|
|
Detector fail | Indicated by red LED |
|
| Audio |
Piezo Buzzer type with ON/OFF switch and adjustable volume |
|
| Power requirements |
12 VDC universal adaptor |
|
| Construction | ABS Plastic Enclosure |
|
| Temperature range |
0º to 130ºF (- 18º to 54ºC). |
|
|
Size | 9.5 (w) x 2.5 (d) x 6 in (h) (22.9 x 6.4 x 15.2 cm) |
|
| Weight | 1.5 lb (0.7 kg) |
